B&B PT PWRD 9PIN 232/485 CONV W/SD Item # 346095
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
346095
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description

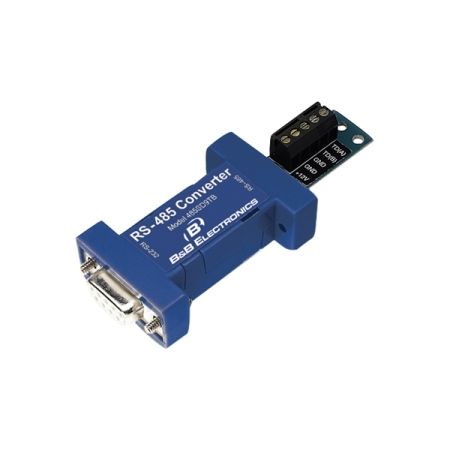

The 485SD9TB is a port-powered two-channel RS-232 to RS-485 converter. It converts the TD and RD RS-232 lines to balanced half-duplex RS-485 signals. The unit is powered from the RS-232 data and handshake lines whether the lines are high or low. An external power supply can be connected to two terminals on the RS-485 connector if no handshake lines are available. The 485SD9TB has a DB-9 female connector on the RS-232 side and a terminal block connector on the RS-485 side.
Product Details
| Item # | 346095 |
| Manufacturer # | RV7015 |
| adapter type | Serial |
| weight | 1.60 oz |
| brand name | B+B |
| Connector on Second End | 1 x RS-485 Terminal Block |
| height | 4.5in. |
| Certifications & Standards | FCC Class B; CE; EN 55022; EN 61000-6-1; EN 61000 (-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11) |
| quantity | 1 |
| width | 3in. |
| Product Name | Port-Powered RS-485 Converter |
| Connector on First End | 1 x 9-pin DB-9 Female RS-232 Serial |
| manufacturer | B+B SmartWorx |
| warranty length | limited lifetime |
| model name | 485SD9TB |
